Main material: Model HJ-30A for PE / PP / PVC，Model HJ-30B for PE/PP/PVDF
Application: Welding&joint of Metal Reinforc Pipe fittings , elbow welding HDPE Corrugated Pipe, Welding of plastic sheets/plates/pipeline& HDPE GEO-membrane film and planting Bath & exhaust gas treatment tower manufacture
HJ-30B portable plastic welding machine is a patent product of our company. Main machine is from German METABO, fan is from Switzerland LEISTER.
HJ-30B is fit for welding PE, PP materials. It is also popular model.
Application area:
1. Oil & chemical plastic pressure vessel, tank, container
2. Large caliber plastic pipe/tube;
3. Kinds of pipe fittings and elbows;
3. Plastic sheet, plastic film;
4. Plastic pallets;
5. Other kinds of plastic products which need to be welded or repaired.
Fit for indoor and outdoor onsite operation.
2. It has A-B-C-D-E-F-G 7 speeds, D and E are usual working speed.
It makes alarm when overheat, needing changing carbon brush and emergency off.
TECHNICAL PARAMETERS

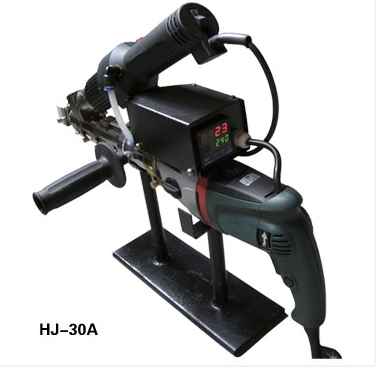

Model | HJ-30A | HJ-30B |
Voltage | 220V~230V | 220V~230V |
Power (Hot Air) | 2000W | 3400W |
Air Volume | 300 L/min | 500 L/min |
Air Temperature | 20-650 ℃ | 20-650 ℃ |
Motor Power | 1300W | 1300W |
Material | PE / PP / PVC | PE / PP/PVDF |
Welding Speed | 2.8 KG/ ф4mm Welding rod | 3.0 KG/ ф4mm Welding rod |
Diameter of welding rod | ф3.0mm -ф4.0mm | ф3.0mm -ф4.0mm |
Weight | 5.5 Kg | 4.8 Kg |
Temperature Control | Temperature controller | potentiometer |

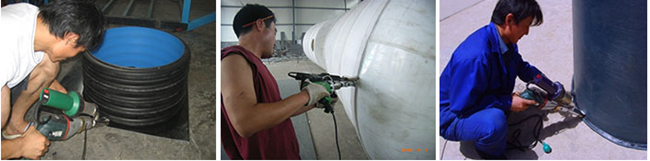

CONSTRUCTION CASE

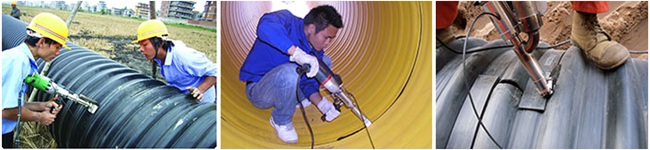

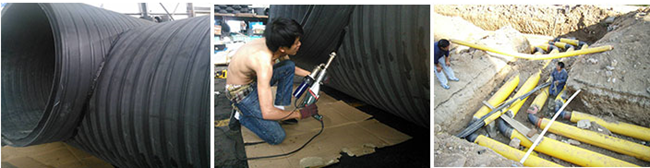

Large diameter Plastic pipe’s welding and repairing.
Oil & chemical plastic pressure vessel, tank, container

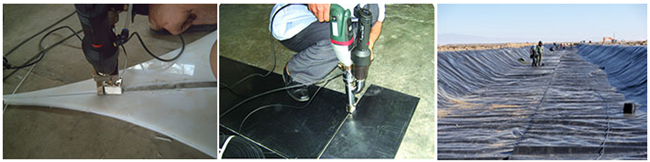

Plastic sheet, plastic film, Geo membrane
Kinds of pipe fittings and elbows

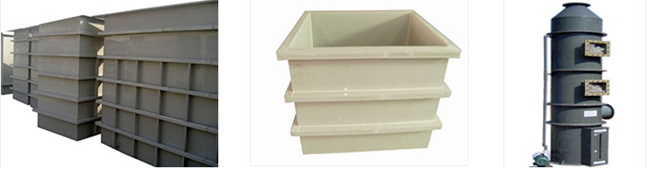

Chemical tanks and containers

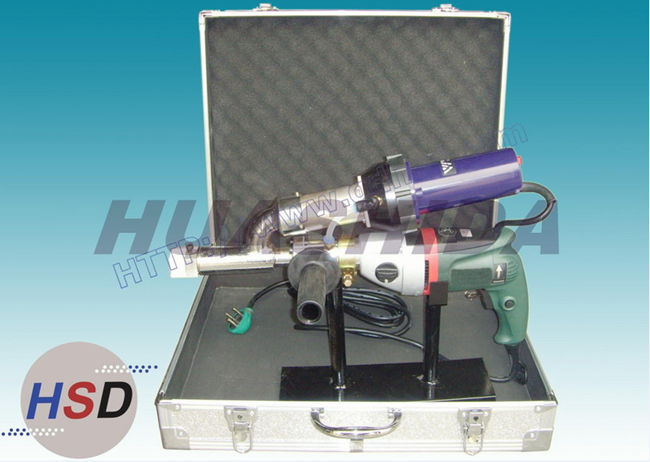

PACKING CASE

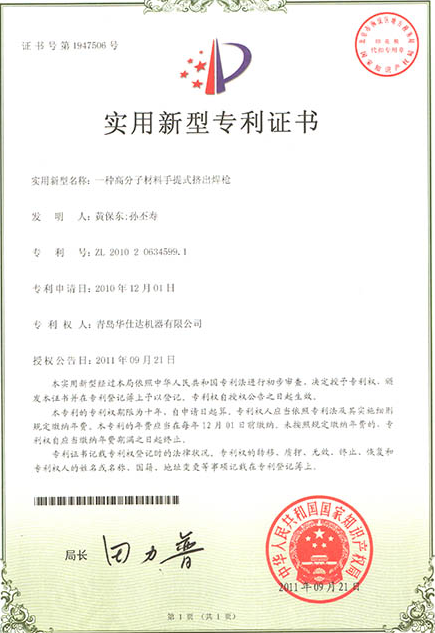

PATENT

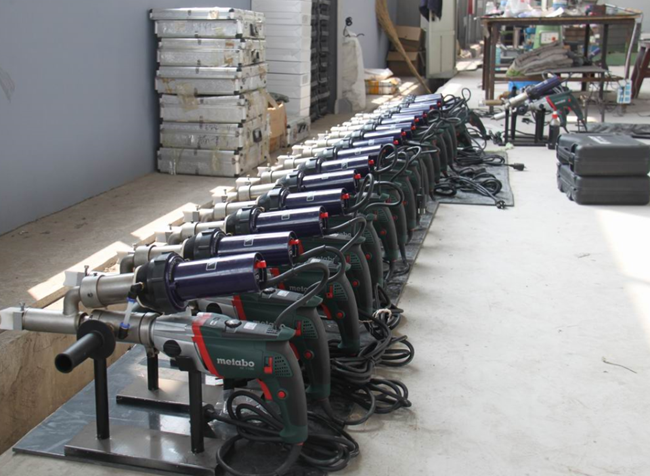

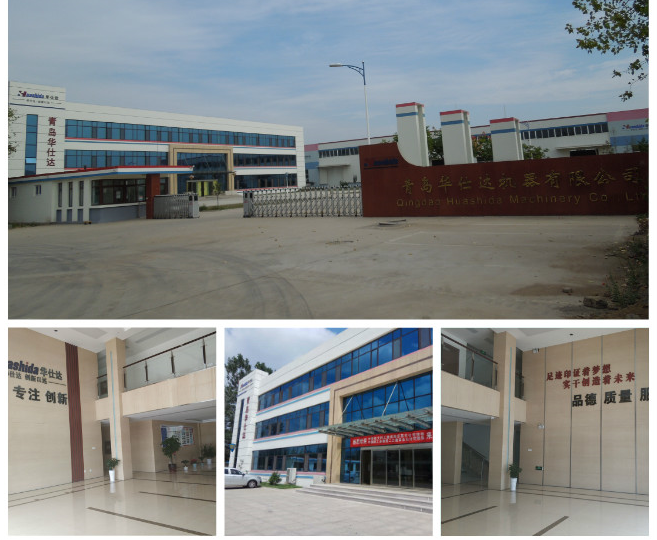

Real Manufacturing Plant
 | Environmental protection, energy conservation and emission reduction!Low energy consumption, high output, low scrap rate, saving materials and time! |
 | Professional team for your service, detailed pre-sales technical consultation and perfect after-sales service to solve your worries. The seller would send technician to the buyer's factory to help installing and test the new machine and train people of the buyer. |
 | 12 months from date of Bill of Lading.During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer because of wrong operation. |
 | Pre-sales and after-sales technical support，customer hotline：0086-532-80999083 |
