HDPE Hollow Structure Wall Spiral Pipe Production Line

DETAILS

Pipe range: 200-800mm, 300-1200mm 1000-2000mm 2000-3000mm

Pipe application area:
This kind of pipe is fit for municipal drainage of water less than 45, building outdoor drainage, buried farmland drainage, industrial sewage, road drainage, sewage disposal work, sport field square drainage, electrical and telecommunication project etc.


HDPE Hollow wall winding profile pipe production line process flow:

Uploading Raw material→ drying raw Material →Single screw extruding →spiral head mould→Calibrating hdpe strip size→Spray cooling HDPE strip →caterpillar traction pe strip→Single screw glue extruder →winder→winding roller forming→water cooler→cutter→pipe rack→finished production inspecting &packing.


Composition of Equipments

1set Single screw extruder with vacuum loader& hopper dryer

1set Square tube die head & mould

1set Vacuum calibration table

1set Water spraying tank

1set Hauling machine

1set Single screw extruder with vacuum loader & hopper dryer

1set Melt adhesive extrusion die head

1set Rewinding forming machine

1set Cutting machine

1set Stacker

1set Siemens PLC

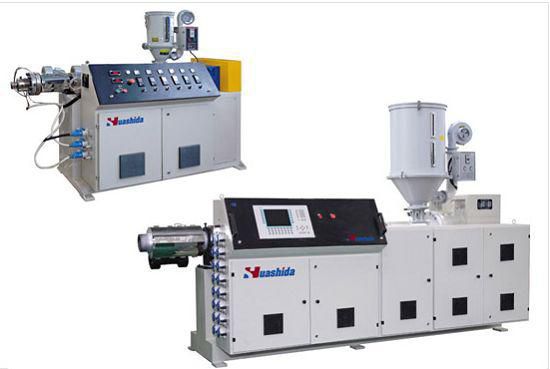

                                                                               Extruder
Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.

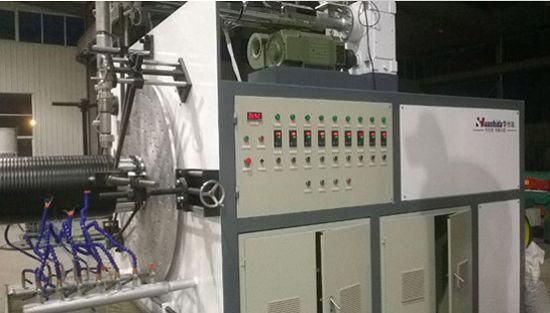

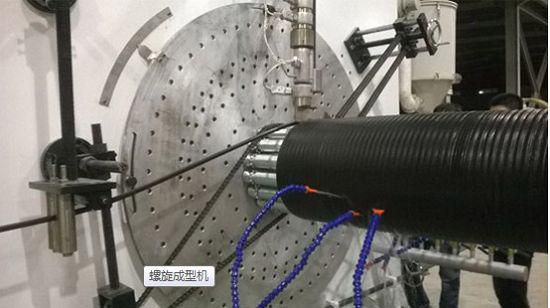

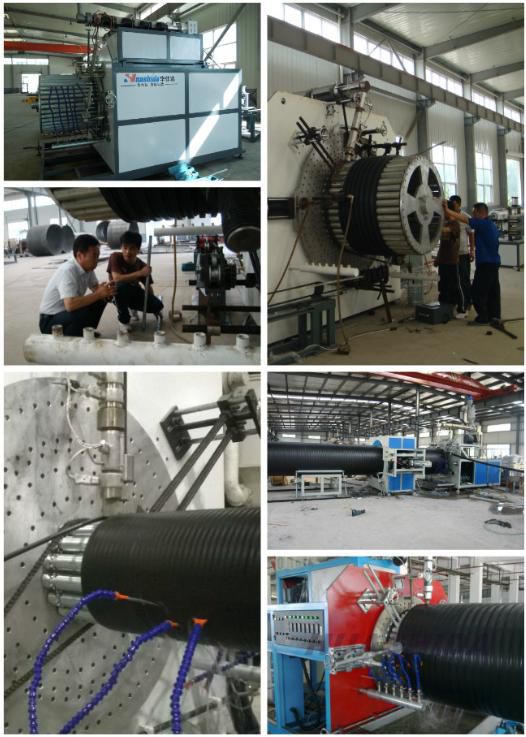

                                                               Rewinding forming machine
It adopts composite die head and spiral rotating forming method, is designed with compact structure.


Technical parameter

ModelPipe rangeExtruderInstalled powerSpeedExtrusion capacityLength
SKRG-800200-800SJ65X30 180KW6-12m/h220kg/h23X12X4M
  SJ45X30
SKRG-1200300-1200SJ90X30 230KW4-12m/h420kg/h26X16X5M
  SJ65X30
SKRG-20001000-2000SJ100X33 400KW2-5m/h600kg/h32X16X6M
  SJ75X30
SKRG-30002000-3000SJ120X33 680KW0.5-3m/h680kg/h42X18X7M
  SJ90X30
